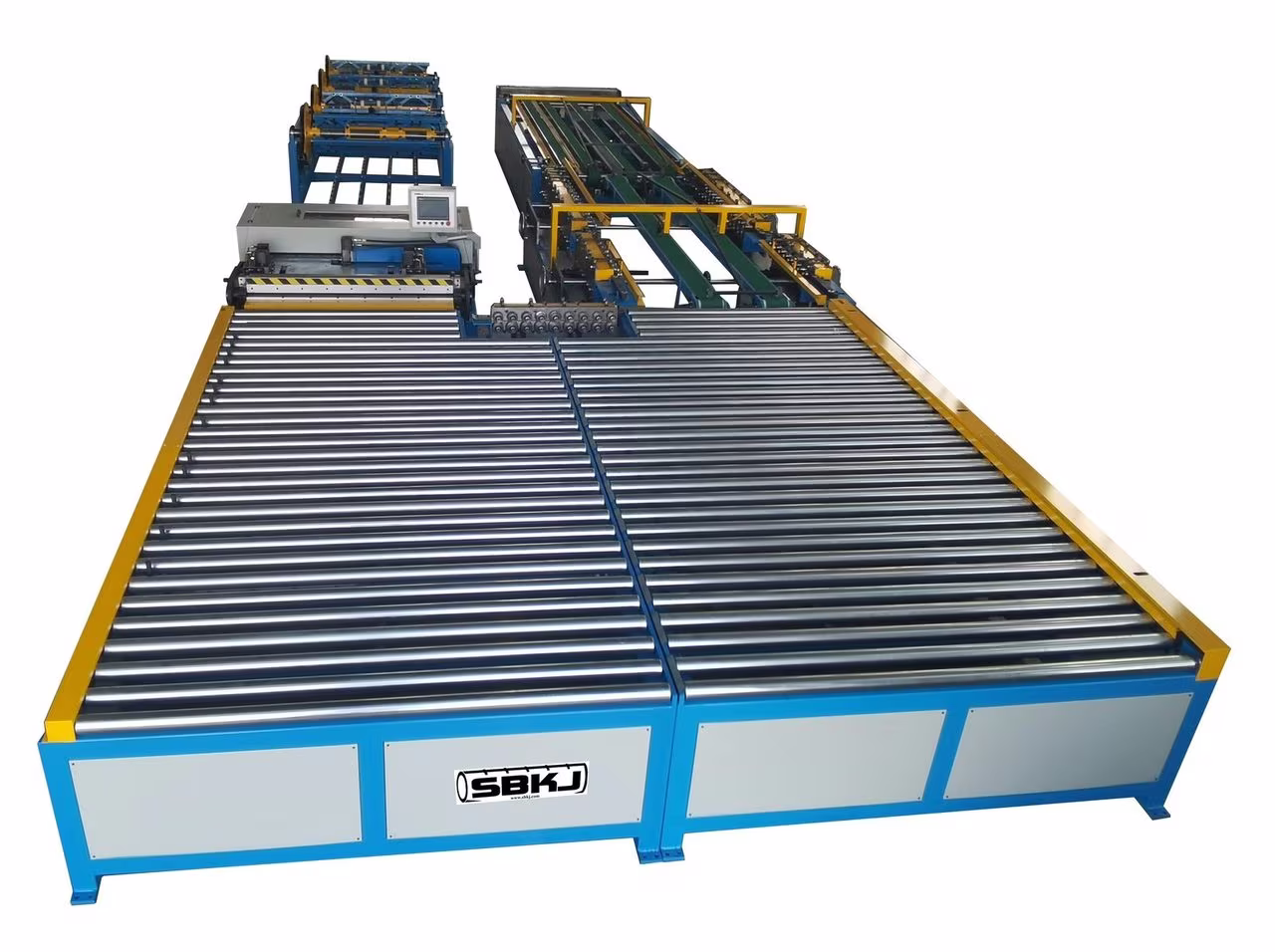

Auto Duct Line SBAL‑V

Specifications, applications and operation

Specification breakdown. The Auto Duct Line SBAL‑V is offered in models SBAL-V-1250U / SBAL-V-1550U, handles material thicknesses of 0.5–1.5 mm, with a maximum working width of 1250 / 1550 mm, at a forming speed of 18 m/min, with overall dimensions of 14500×4950×1500 / 14500×5350×1500 mm, requires 40 kW, weighs approximately 16 tons, runs on 380V / 50Hz / 3PH.

Typical applications. Auto duct production lines like this one are the backbone of any high-volume HVAC ductwork fabrication shop. Typical buyers include large mechanical contractors building airports, shopping malls, hospitals, hotels and high-rise commercial towers, where rectangular supply, return and exhaust ducts are needed by the kilometre. The machine is also commonly specified by specialist duct fabricators supplying multiple installation contractors, and by vertically integrated developers and facility owners running their own in-house duct production.

How it works. An auto duct line of this type takes coil stock at one end and outputs a finished, formed duct section at the other with minimal operator involvement. The integrated workflow includes decoiling, levelling, longitudinal beading and notching, shearing to length, Pittsburgh lock forming on the longitudinal seam, and TDF or angle flange forming on the transverse ends. The operator enters duct dimensions on the PLC touchscreen and the line completes a full forming cycle automatically — typical changeover between sizes is under one minute.

Quality, certification and after-sales. Like every machine in the Taokron catalogue, this unit is built under an ISO 9001:2015 certified quality management system and ships CE marked with a Declaration of Conformity. Taokron was founded in 1994, has an Australian office in Box Hill North, VIC, and holds 60+ invention and utility patents in HVAC ductwork machinery design. Each machine ships with a 12-month warranty on mechanical and electrical components and spare parts support; on-site installation supervision and operator training by a Taokron engineer are quoted per engineer-day. Remote support is available via WhatsApp and email, with engineer response within 12 hours.

Where this fits in your workshop

An auto duct production line is the centrepiece of a modern rectangular HVAC duct workshop. The SBAL family integrates decoiling, levelling, notching, beading, cut-to-length, scoring, folding, seam closing and TDF flanging into a single coil-to-duct line operated by 2–3 staff. Output is finished commercial-grade rectangular duct ready for corner blocks and packing. The line replaces what used to be 6–8 separate stations and 8–12 operators on a traditional duct shop.

Pre-purchase checklist

Use this list when you write the enquiry or when you compare two suppliers. Each line is something a Taokron engineer will want clarified before quoting.

• Maximum daily output target in m² per shift, not theoretical peak
• Minimum and maximum duct cross-section — small ducts slow most lines
• Material thickness range — thin gauge is faster, heavy gauge needs servo torque
• Workshop length — the SBAL-V needs roughly 35 m of straight floor
• Operator and maintenance training — on site during commissioning, quoted per engineer-day
• Power, compressed air and lifting requirements for installation day

Operator and maintenance notes. The Auto Duct Line SBAL‑V is designed to be run by a single trained operator under normal conditions. Daily checks include lubrication of the forming rolls, inspection of the drive belts and chain tension, and a clean-down of the tool surfaces. Weekly checks add electrical cabinet inspection and a torque check on the main frame fasteners. Taokron ships every machine with an English operator manual, a maintenance schedule and a recommended two-year spare parts kit. Operator training is part of the on-site commissioning visit, which is quoted per engineer-day with the machine, and a refresher session can be arranged within the warranty period.
